Manual Flexible Precision Zero Point Clamping Quick-Change System Riser SK52-D16

zero point clamping quick-change pallet system with 8 pcs pull stud

A riser improves accessibility in 5-sided machining and can either be mounted directly and firmly on the machine table or set up and removed on a zero-point plate. It is available in round and rectangular versions in heights of 80 and 100 mm. The zero-point plates are pinned, aligned and mounted to the riser via bushings.

No need to disassemble and calibrate time.

Details: 96 style uprise vise

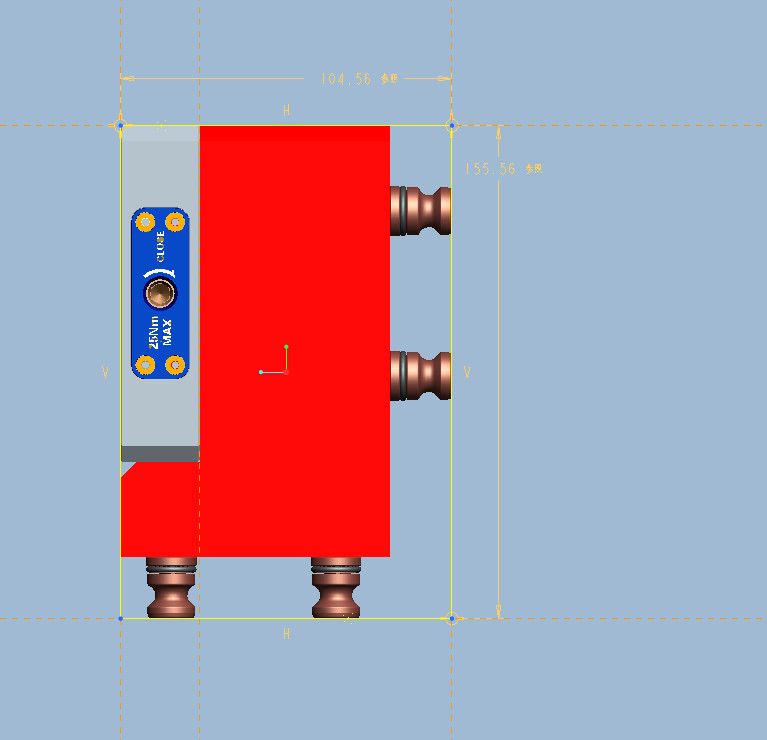

Size:105*156*106MM
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: hard steel + aluminum
Weight:

Dongguan LiHeng machinery industry co.,ltd

was established in 2008 in China,specialized in designing and manufacturing of Precision Workholding

Fixtures,clamping tools for CNC milling,grinding machines.

Our products have 52 and 96 series for 3/ 4/ 5 axis cnc maching working machine.

Our Products include precision 4 hole palletes position fixture and self centerning vise two parts.

Our Manufacture is in GuangDong, Dongguan city, China .And has exported for 10 years to Malasiya, Singapore,Southest Asia, Europe, South Korea,Russia, USA, Canada,Mexico, Brazil, Australia.

We also accept OEM work, customer can send us a drawing if the order quantity is reasonable to make a production.

AST always pursues to produce high quality products at the lowest price,fast delivery,best service.

We are looking forward to your kind cooperation, and we would highly appreciate any feedback regarding our products quality,service.
