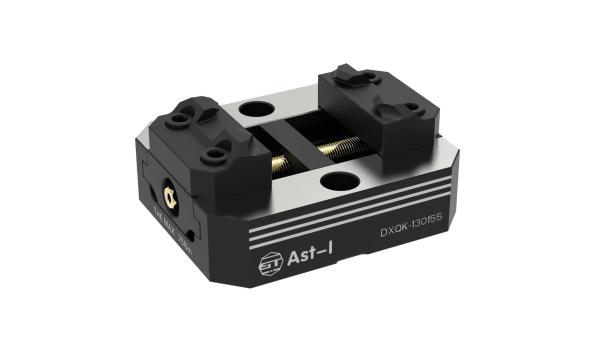

Self-Centering Vise The 4th Or 5th Axis For Milling Machine 130155
Features:
1,Self Centring Precision Vise is suitable for 4 and 5 Axis CNC Rotary Table usage, either in horizontal or vertical machining.
2. Vise precision of its center repetition position is within0.02mm.
3. Using high quality alloy steel. Slideway has high frequence heat treatness at HRC 45 or more to keep the accuracy and its long use life.
4. Vise hard jaw material is full Steel and heat treatness at HRC 55~ or more. Owing to its good design to use both sides of jaw since it is exchangeable.
Product Description:
Size:130x150x73.5m
Clamping range:0-150mm
Clamp body width:130mm
Max opening 155mm self centering 5 axis vise
1. Material: steel.
2. Warranty:1 years
5.max clamping range:155mm
|
|
