HRC50 Self Centering Vise Steel Manual Precision Machine Vise

Ask Lasest Price
Brand Name :	AST
Model Number :	DXQ125128
Payment Terms :	T/T
Supply Ability :	5-7Working days after confirm order
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

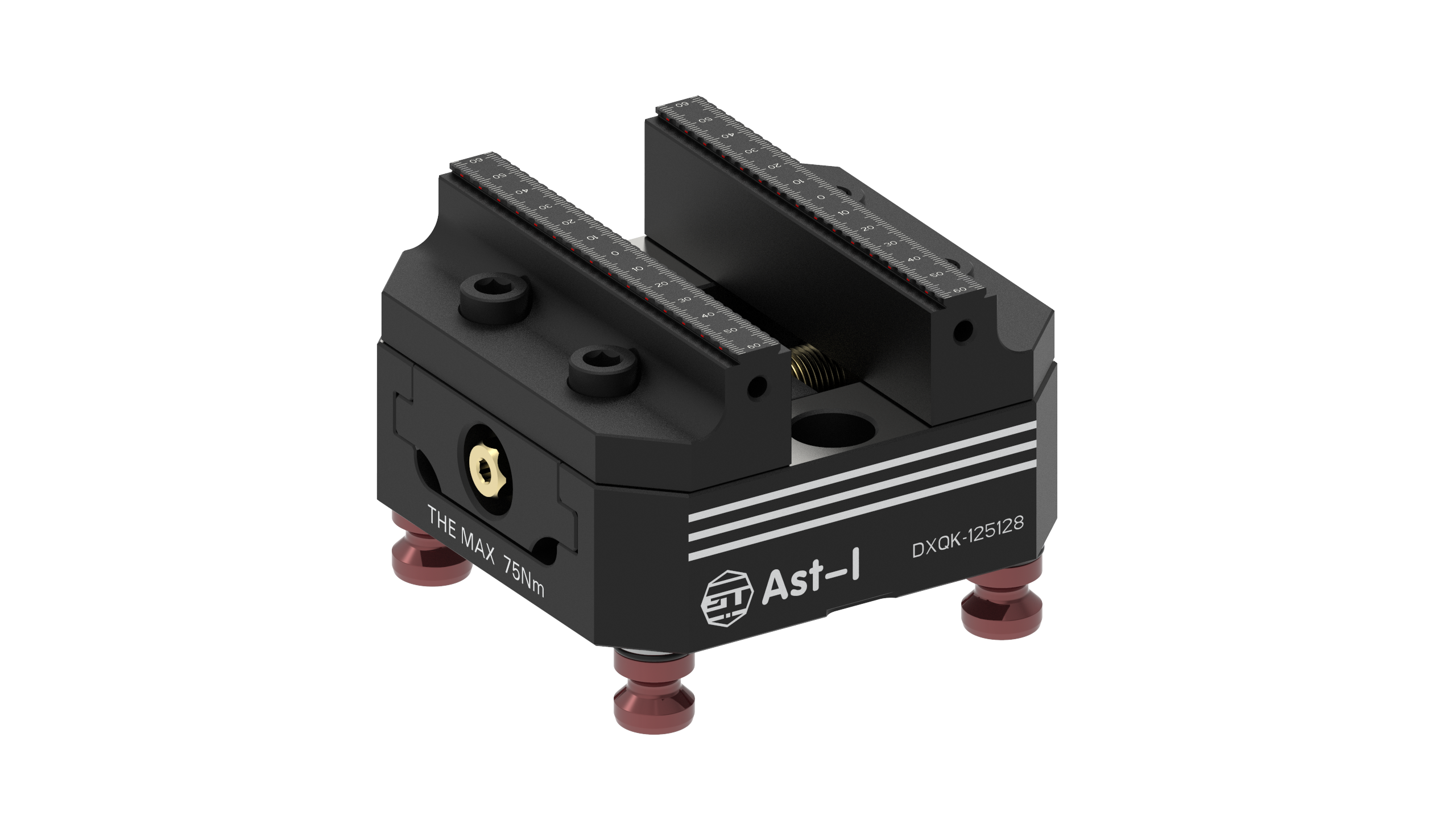

HRC50 Self Centering Vise Steel Manual Precision Machine Vise

Manual Fixture Precision 5-Axis Self Centering Vise For Cnc Milling
Machine 125128
Significantly upgrade CNC 5-Axis Machines
Special 45° dovetail structure with teeth
The patented calibration system can regulate clamping center easily
and rapidly
1.Vise body is made of High quality Steel and its slideways gone
through high-frequency hardening to achieve HRC50, which makes the
whole part durable.
2.Detachable jaws are made of High quality Tool Steel and gone
through carburizing to achieve HRC55. Since both sides are fixed
size and able to be used as a datum, users can reverse them to
increase clamping range.
3.The repeatability positioning precision of its clamping center is
within 0.02mm.
4.Users can calibrate the clamping center of vise by adjusting the
screws on both ends.
5.The 45° dovetail structure with teeth on the upper jaw ensures
the bottom of the workpiece to be firmly clamped.
Product Description:

Size:126x128x73.5m
Clamping range:0-128mm
Clamp body width:125mm
Maximum torque:75Nm
Weight:6.0Kg

Max opening 155mm self centering 5 axis vise
1. Material: steel.
2. Warranty:1 years
5.max clamping range:155mm

Product Name	self centering vise DXQ125128
Material	stainless steel
Used	Four-axis, five-axis, CNC indexing plate, precision machining of vertical horizontal CNC milling machine.
Advantage	Easy to use,precise clamping.
